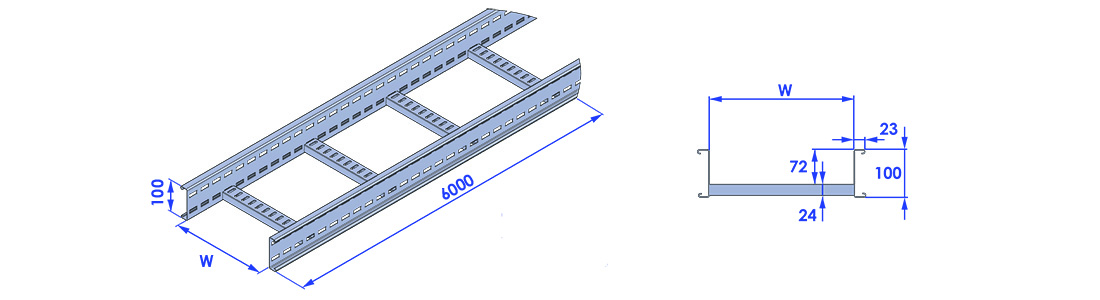

SQ100 (20A) Medium Duty Ladder
Cable Laying Depth: 72mm
Rung Spacing: 300mm nominal
Length: 6m (Standard) , 3m , 5.8m
Style: Rail Out
Finish: Hot Dipped Galvanised (HDG) AS4680/ISO1461 , Stainless Steel 316 (SS316)
Accessories: Structural Rail Out
Accessory Radius: 300mm (Standard) , 450mm , 600mm , 900mm , 1200mm
Loading Data: 74kg/m on 6m span (SF 1.5) – Tested to NEMA VE1 Specification 2009
Ordering Options:
| Ladder Type | Width “W” | Finish | Length |
| SQ100 | 15 = 150mm | H = HDG | 3 = 3m |
| 30 = 300mm | S = SS316 | 5 = 5.8m | |
| 45 = 450mm | 6 = 6m | ||
| 60 = 600mm | |||
| 90 = 900mm |
Eg. SQ100-RI-15-H-6
